Sketch

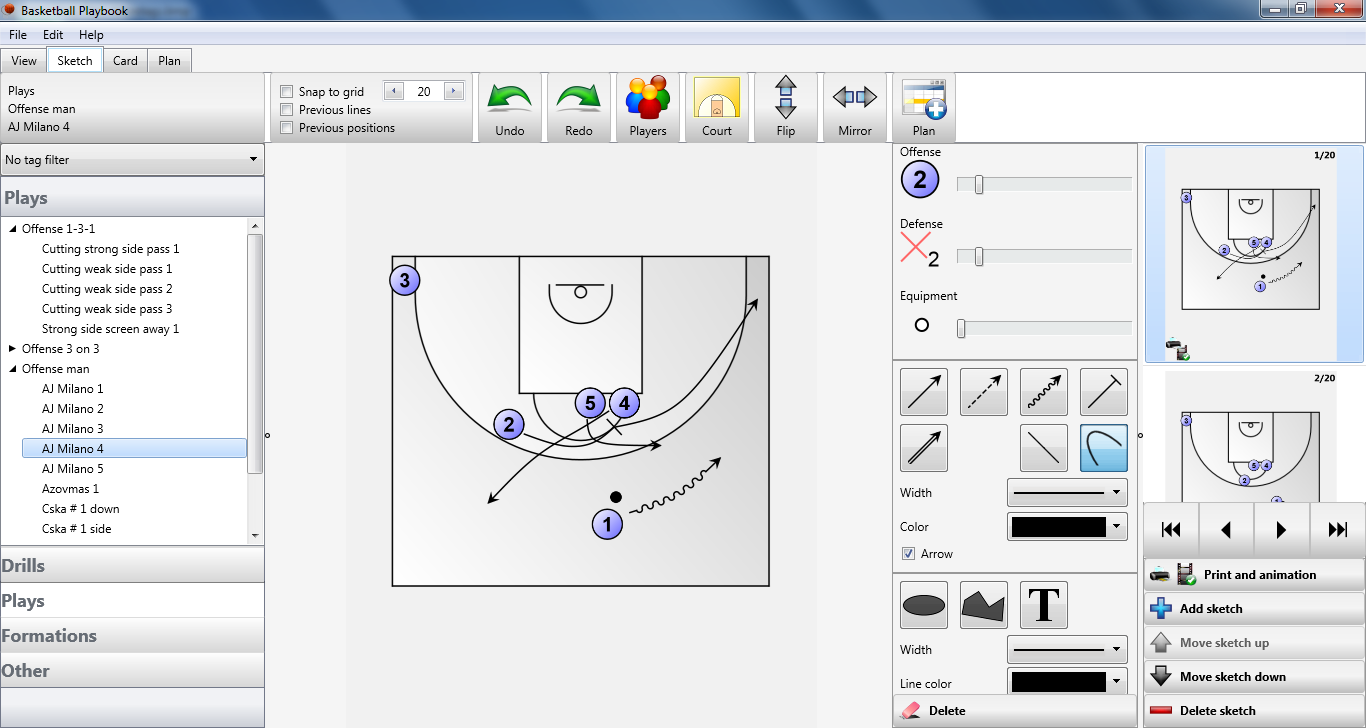

With the sketch tab selected a sketch of the current drill can be edited.

The top bar has the following buttons and information blocks:

Play info

On the left side the play type, category and the play name of the current play are shown.

Draw options

To align players and lines check the snap function and select the size of an invisible snap grid.

If the previous position checkbox is checked the players of the previous sequence are drawn in light gray.

With the previous lines checkbox you can show or hide the lines of a previous sequence, if there are no lines in the previous sequence the sequences before that will be checked for lines.

Undo

       Press the undo button to undo the last drawing action.

Redo

       Press the redo button to redo the last undo drawing action.

Players

       Quickly select the symbols for offense and defense.

Change the default player settings by clicking the expand button.

Court

       Change the court colors and court layout by pressing the paint button on the court block.

Flip

       Flip the sketch.

Mirror

       Mirror the sketch.

Plan

       Add the selected play or category to the plan.

At the left side the available plays and drills are shown.

There are 5 different play types available (drills, plays, formations, templates and other), which can be selected by clicking on the buttons at the bottom. the header will show the selected play type.

In the play type you can then select the category followed by the play or drill of your choice.

By right clicking on a play you can copy, delete, rename or give it one or more tags, these options are also available in the edit menu.

When tags are available the tag filter is visible at the top is visible.

On the right side you can select the sketch to work on.

If the Animation only checkbox is checked the current sequence will not be printed.

Add a sketch below the current sketch by pressing Add sketch,  The maximum number of sketches per play is 75.

Move a sketch up or down.

And delete the selected sketch.

The players, balls and coaches can be selected and dragged and dropped on the court, with the main mouse button.

The movement of players and balls can be drawn with the 5 different arrows. The ellipse and polygon can be used to give a part of the court a different color. The text button can be used to add text to a sketch.

See the symbols for an explanation of the different graphics.

The Delete button will delete selected players or movement lines.

When a player is selected a player edit window is shown and depending on the player the color, text or rotation can be altered.

The same option can be used for lines, ellipses, polygons and text.
